Toshiba Satellite C655D-S5511 – LCD Screen Replacement

Purchased from http://www.laptopscreen.com/

 Tools Used

     ·       Screwdriver

    o  Phillips #00 (or close)

    o  Slotted #1.0 (or close)

     ·       Guitar pick (or pry tool)



1.   There are (4) screws that need removed from the front

a.   Use a slotted screw driver (or blade) to remove the screw cover and then the screws

 2. Use the guitar pick (or like item) and run around the outer edge to completely release the frame. (caution not to hit the camera or wires with tools)

 3. Pry gently from inside edge with fingers (all the way around) to release the cover

4. Remove the (6) screws holding the LCD

                                                            •     3 one each side

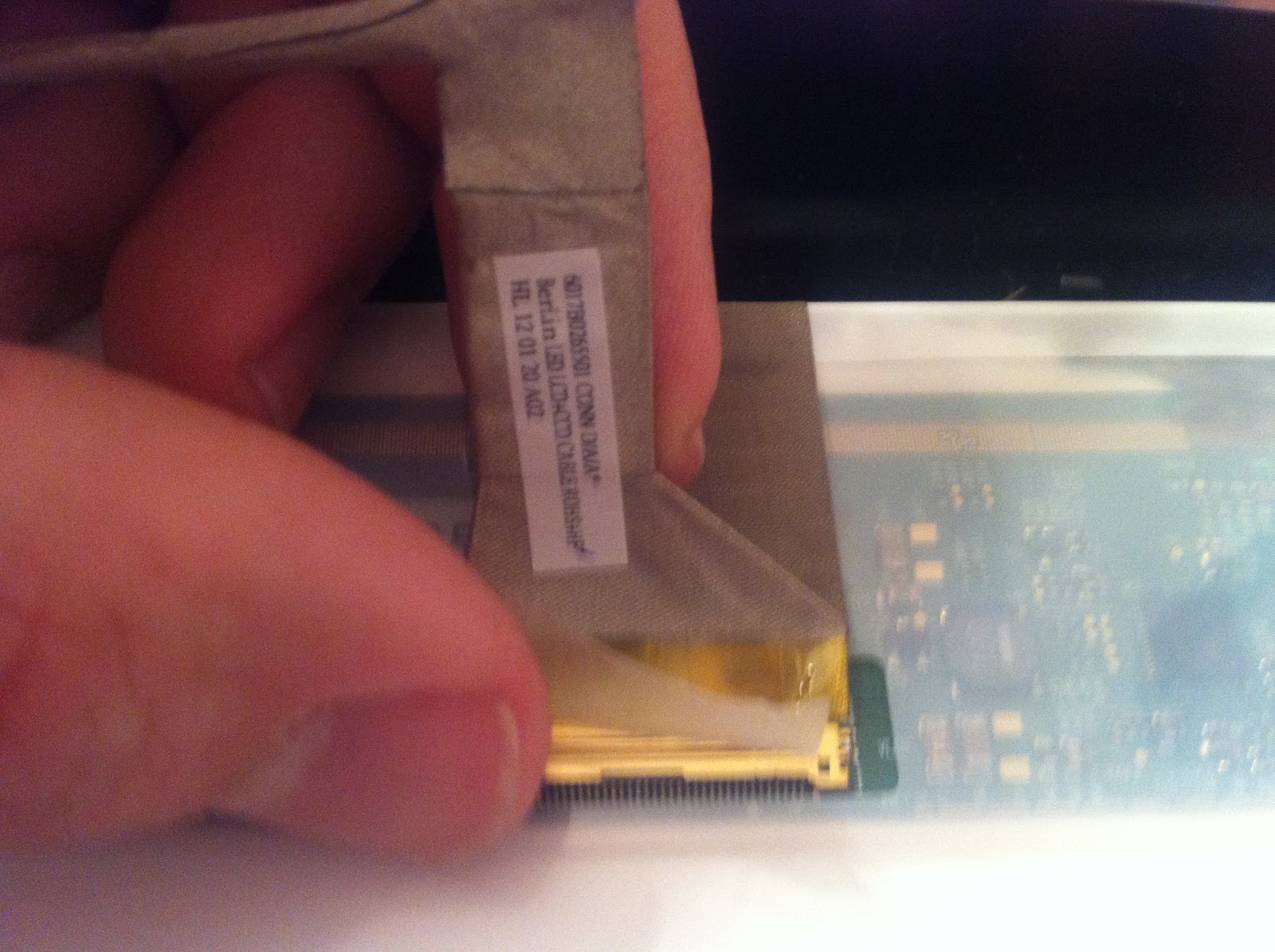

  5. Lay the LCD down to unplug

a.   Gently pry the adhesive loose and unplug

 6. Plug the new LCD in and put it in place I

a.   Insert the (6) screws that hold the screen in the frame.

b.   Put the cover/frame in place and squeeze gently to snap in place

c.    Insert the (4) final screws and you are DONE!

 I personally rate this screen replacement a 2 out of 10. (10 being difficult)
